| مكان المنشأ: | مقاطعة شاندونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | SH |
| إصدار الشهادات: | ISO9001,CE |
| رقم الموديل: | SLDJ-1300-3 ، إلخ |
| وثيقة: | wood pallet nailing machine...ne.pdf |
| الحد الأدنى لكمية: | 1 مجموعة من رقص البليت الخشبي آلة تسمير تلقائي |
| الأسعار: | US $7,800 - 12,400 / Set |
| تفاصيل التغليف: | تصدير التعبئة أو تحميل الحاوية ملفوفة |
| وقت التسليم: | في غضون 20 يوما |
| شروط الدفع: | / تي تي، ويسترن يونيون |
| القدرة على العرض: | 1000sets/سنة من البليت الخشبي بير آلية التوصيل التلقائي |
| اسم: | آلة تسمير كتلة البليت الأوروبية | سعة: | 600p/h |
|---|---|---|---|
| الطاقة (ث): | 1.5kw servomotor | عرض كتلة: | 60-150mm |
| طول اللوحة: | 600-1300 مم أو كاحتياجات العملاء | مسدس الأظافر: | Stanley Bostitch Stitch Gun70mm*3 |
| طريقة تسمير: | 1 مسمار ، 2nails ، 3nails ، 4nails ، 5nails | ضمان: | 12 شهرا بعد استلام الجهاز |
| العمالة المطلوبة: | 1 عامل | خدمة ما بعد البيع المقدمة: | التكليف والتدريب ، الدعم الفني للفيديو |

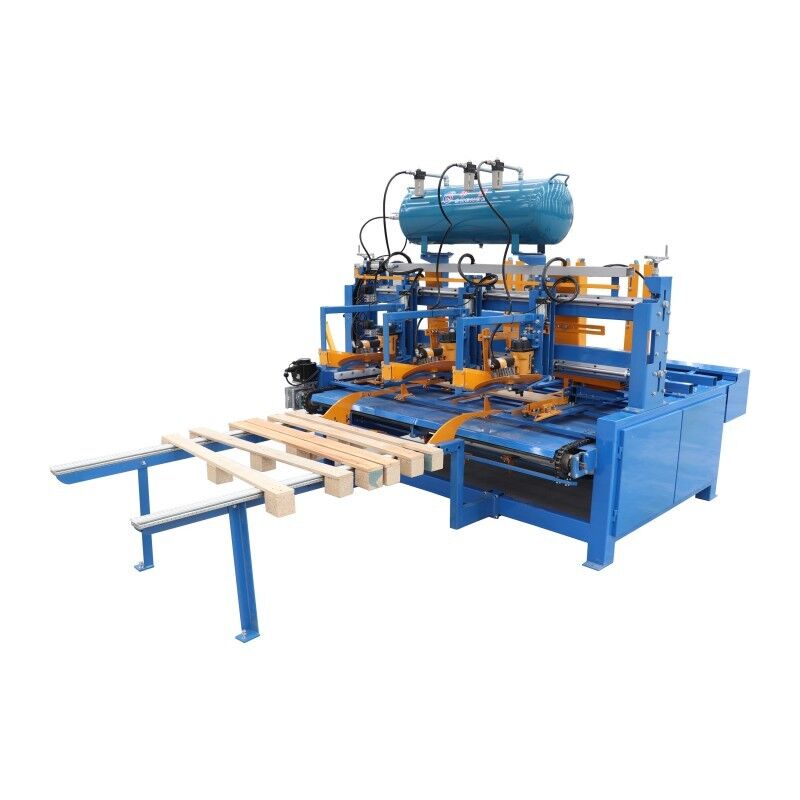

Automatic Euro Pallet Block Nailing Machine
– High-Efficiency Automated Pallet Production
Our Automatic Euro Pallet Block Nailing Machine is a heavy-duty, high-performance industrial solution designed for the automated assembly of Euro pallet blocks and stringers. It streamlines the traditional, labor-intensive nailing process, ensuring maximum safety, uniform quality, and high-speed output.
Advanced PLC Control System: User-friendly touch screen interface allows for quick adjustment of nail spacing, block dimensions, and production speed.
High Compatibility: Perfectly handles standard Euro pallet blocks (145mm x 145mm, 145mm x 100mm, etc.) with precise positioning.
Pneumatic / Hydraulic Nailing System: Delivers strong, consistent driving force, ensuring nails are perfectly flush or countersunk according to your requirements.
Automatic Pallet Nailing Machine & Stacking (Optional): Can be customized with automatic pallet nailing machine and pallet stackers to minimize manual handling.
Durable & Robust Design: Built with high-grade industrial steel to withstand continuous, high-intensity factory environments.
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | Stanley BOSTITCH Stitch gun70mm*3 |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.1KW Servomotor |
| Capacity | 600P/H |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |
| Machine size | 2500*1800*2100mm |
Ideal for Euro pallet manufacturing, block pallet production, and custom pallet assembly.
Suitable for large-scale industrial operations requiring high-speed, repeatable nailing precision.
Reduces production time and costs while maintaining consistent, high-quality output.
Related Hot Selling Machines
| Model | PB200 |
| Working mode | Automatic feeding ,automatic nailing and cutting |
| Operating mode | Touch screen control |
| Operational mode | Pneumatic operation |
| Motor power | 7.5KW,2.2KW*2,1KW |
| Raw material length | 1000-3000mm |
| Block Length | 40-200mm |
| Cutting height | 40-120mm |
| Cutting width | 40-100mm |
| Cutting blade | 350-400mm |
| Number of planer | 2 |
| Nail quantity | 1-3 pcs (adjustable) |
| Working Efficiency | 5-6m3/day |
| Voltage | 380V/3 Phase |
| Weight | 1200Kg |
| Dimension | 5400*1400*1600mm |
Wood block multi-blade saw
| Model | BM-1250 |
| Cutting Length | 1250mm |
| Cutting Thickness | 100mm |
| Cutting Width | 200mm |
| Saw Diameter | 355mm |
| Motor | 30kw |
| Weight | 1600kg |
