| مكان المنشأ: | مقاطعة شاندونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | SH |
| إصدار الشهادات: | ISO9001:2008 |
| رقم الموديل: | SH600E، SH600D |
| الحد الأدنى لكمية: | 1 مجموعة معالج الحطب الخشبي سجل الخشب |
| الأسعار: | US $4,100-38,900 / Set |
| تفاصيل التغليف: | تحميل الحاوية |
| وقت التسليم: | في غضون 25 يومًا |
| شروط الدفع: | T / T أو L / C عند الرؤية ، Western Union |
| القدرة على العرض: | 1000sets/سنة معالج الحطب |
| اسم: | مقسم السجل، معالج الحطب | حالة: | جديد |
|---|---|---|---|
| قوة: | محرك كهربائي 45KW أو محرك ديزل 105HP | <i>Max.</i> <b>الأعلى.</b> <i>log diameter</i> <b>قطر السجل</b>: | 600 ملم |
| Max.log طول: | 6 أمتار | قطر شفرة المنشار: | 1350mm |
| التوجه الهيدروليكي: | 50 طن | سكين: | 4/6/8/12/16 أسافين |
| ضمان: | 12 شهر | خدمة ما بعد البيع المقدمة: | الدعم الفني للفيديو، الدعم عبر الإنترنت |
| إبراز: | 50-ton mobile firewood processor,600mm log splitter and cutter,heavy-duty wood crusher with warranty |
||
This large-scale mobile log processing unit is the ideal choice for the forestry and timber processing industries. Integrating conveying, cutting, and splitting functions into a single system, it establishes an automated assembly-line workflow that transforms raw logs into finished products.
| Model | SH600E |
| Infeeding Conveyor Length | 3000mm |
| Infeeding Conveyor Width | 3500mm |
| Number of feeding slope chains | 4 |
| Infeeding Conveyor Motor Power | 3KW |
| Processing Wood Diameter | 600mm |
| Saw Blade Diameter | 1350mm |
| Incoming wood length | 6000mm |
| Feed chain length | 4500mm |
| Motor power of horizontal conveyor | 3KW |
| Hydraulic Jack Stroke | 600mm |
| Hydraulic cylinder diameter | 7" Splitter Cylinder(180mm) |
| Hydraulic thrust | 50Tons |
| Blade |
4/6/8/12/16 way wedges |
| Hydraulic Motor power | 45KW |
| Splitter Cycle time | 5 Seconds |
| Tank volume | 60 Gallon |
| Hydraulic tank volume | 160 Gallon |
| Hydraulic tank cooling | Cooling fan |
| Cutting method | Automatic feed cutting |
| Chopping method | Auto Cycle Splitter |
| Control method | Single Joystick Control |
| cockpit | Heating and cooling air conditioners, heating |
| Discharge Conveyor Length | 6000mm |
| Discharge Conveyor Width | 600mm |
| Number of discharge slope chains | 2 |
| Discharge conveyor motor power | 3KW |
| Weight | 8000KG |
GASOLINE ENGINE WOOD PROCESSOR
It is a trailer-mounted firewood processor approved for road use, making it ideal for both the rental market and those who want to transport the machine over longer distances by car.
| Model | RM40 |
| Power | 15HP Gasoline engine |
| Weight | 520kg |
| Max. log diameter | 400mm |
| Max.log length | 55cm |
| Saw motor with bearing | 36L/min, 4800rpm |
| Chain saw | 18inch (Original STIHL) |
| Cylinder Bore | 3.2inch |
| Cycle time | 7second |
| Wheel | 12inch high speed trailer wheel |
| Knife | 4ways (Optional 6 ways) |
Hydraulic Wood Splitter
1.Introduction :
Wood Splitter this equipment is mainly applied in the splitting of stumps, and the splitted stumps can be processed into wood chips as raw materials for wooded board industry and paper making industry. Before this kind of equipment is developed, band saw is usually used to divide up wood materials into pieces. However, these grotesque tree roots usually contain some sand and stone, so it easily causes damage to saw and poses some dangers to operators, and it is low efficient method.
Wood Splitter possesses a high efficiency in the splitting of stumps, and is safe, reliable and endurable. Since this equipment was launched into market, it has been making full use of rich wood resources to create good economic benefits for users, and in return it receives high appraises from users
2.Specification:
| Model | SHPM1200 | SHPM1500 |
| Motor power | 15KW | 18.5KW |
| Stroke | 1200MM | 1500MM |
| Forward speed | 80MM/S | 80MM/S |
| Backward speed | 120mm/s | 120mm/s |
| Max. thrust | 30T | 50T |
| Weight | 2200kg | 3000kg |

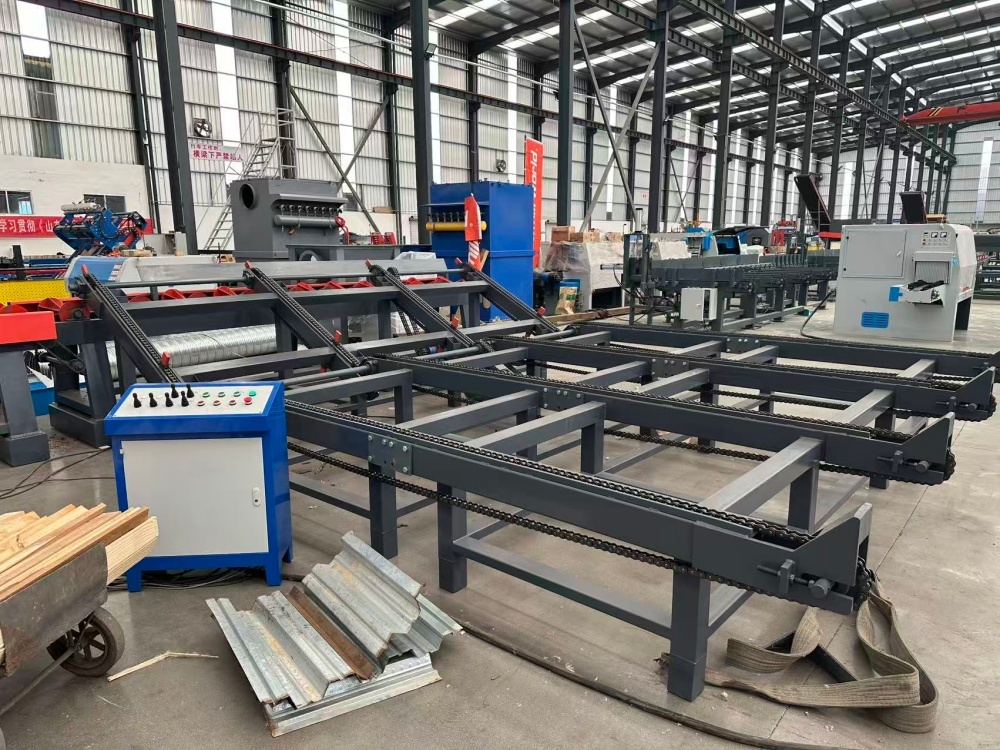

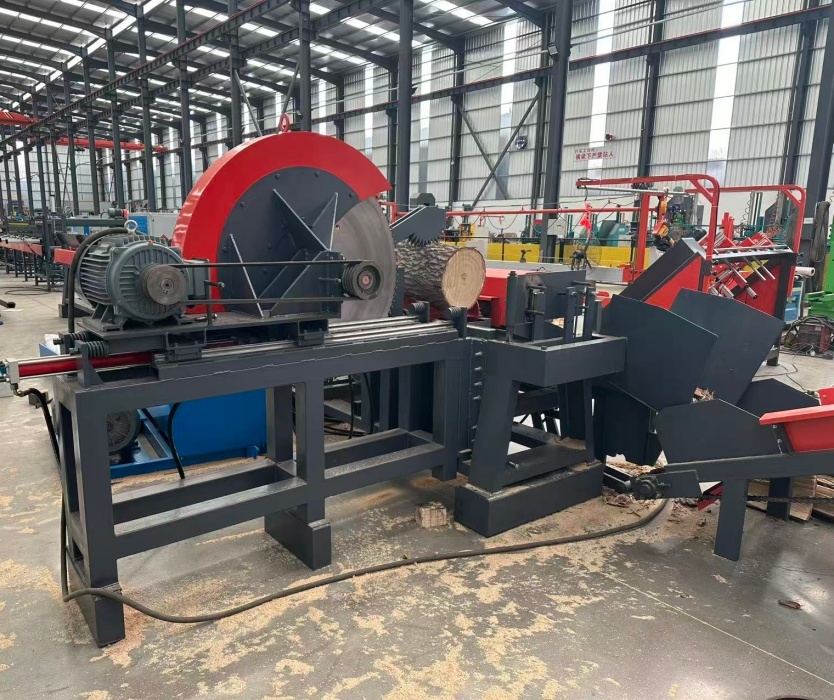

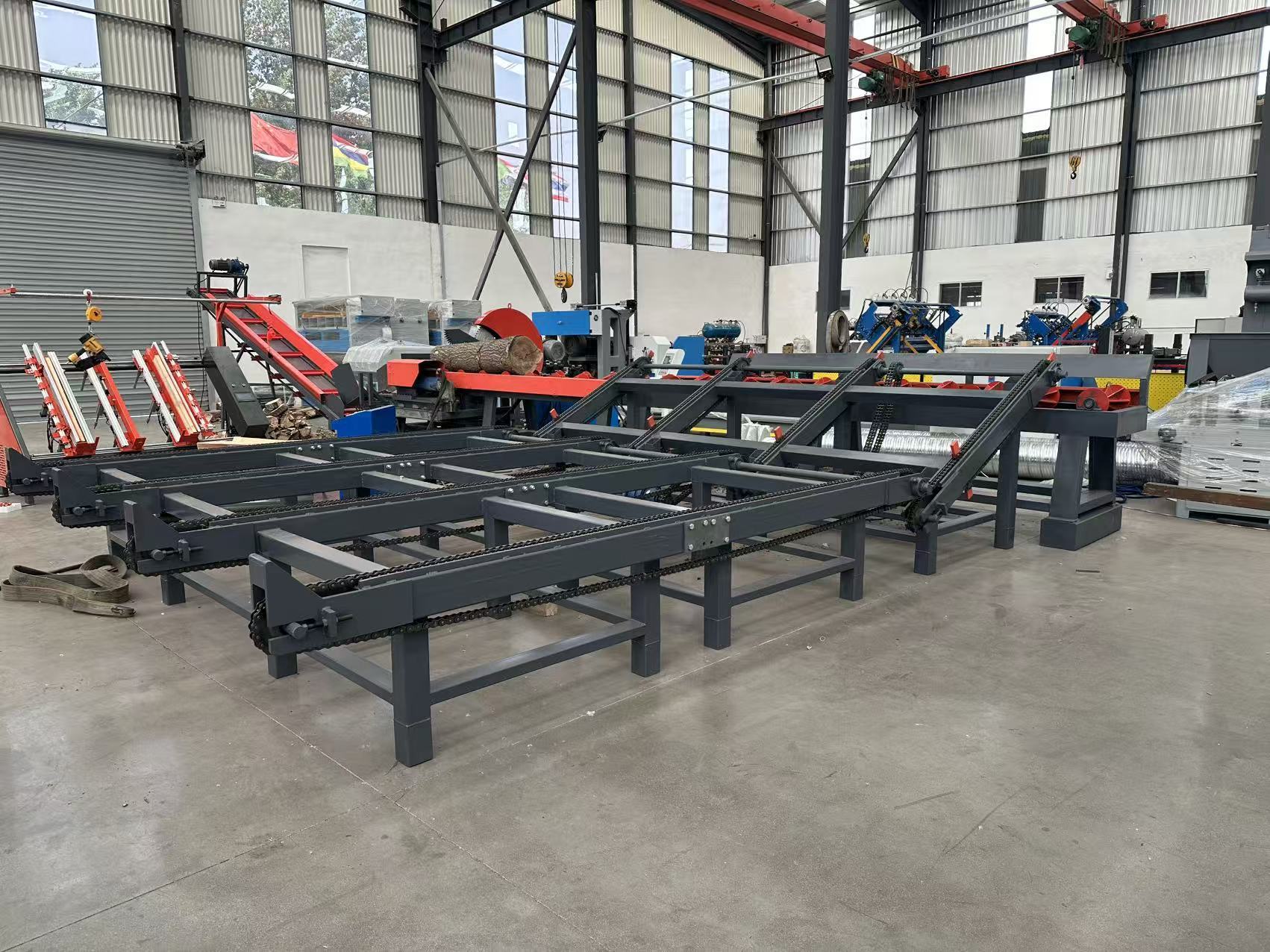

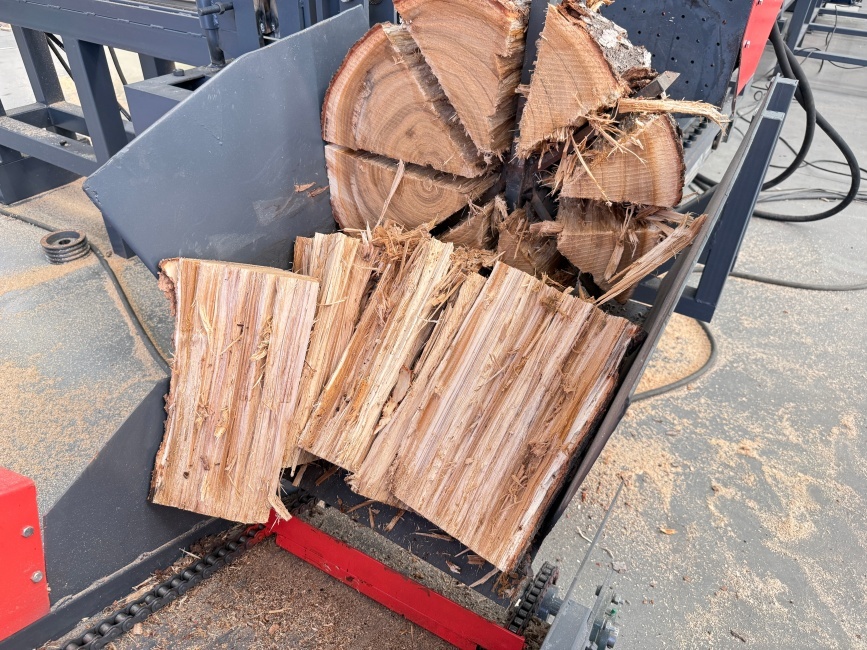

3.Photos:
