| مكان المنشأ: | مقاطعة شاندونغ ، الصين |
|---|---|
| اسم العلامة التجارية: | SH |
| إصدار الشهادات: | ISO9001 |
| رقم الموديل: | PT-1600 ، PT-3300 ، AWPN-1300 ، إلخ |
| الحد الأدنى لكمية: | 1 مجموعة آلة تسمير البليت |
| الأسعار: | US $4,200 - 21,500 / Set |
| تفاصيل التغليف: | تحميل الحاويات لآلة تسمير البليت |
| وقت التسليم: | في غضون 20 يومًا |
| شروط الدفع: | T/T ، Western Union |
| القدرة على العرض: | 1000sets / year من آلة تسمير البليت |
| اسم: | طاولة تسمير البليت الهوائية | عرض البليت: | 800-1600 ملم |
|---|---|---|---|
| طول البليت: | 600-1300 ملم | سعة: | 240-400 منصة / 8 ساعات |
| ضغط التشغيل: | 0.8MPA | عدد مسدسات المسامير اللولبية: | 2P (CN70 CN55) |
| وزن: | 650 كلغ | الكمية من المراسلين: | 2 أو 3 أو 4 أو 5 المراسلين |
| مشبك هوائي: | توسيط الكتل بسهولة | رفع هوائي: | يرفع منصة نقالة لتقليل رفع المشغل |
| خدمة ما بعد البيع المقدمة: | الدعم عبر الإنترنت وقطع الغيار المجانية والتكليف والتدريب | ||
| إبراز: | semi-automatic wood pallet machine,pneumatic pallet nailer machine,wood sawdust block pallet maker,pneumatic pallet nailer machine,wood sawdust block pallet maker |
||
Maximize your output and minimize labor costs with our Semi-automatic European Pallet Pneumatic Nailing Table. This isn't just a machine; it's a productivity partner engineered to empower a single operator to build an impressive 240 to 400 pallets within an 8-hour shift. By automating the heaviest and most repetitive tasks, we deliver unparalleled efficiency, dramatic ergonomic improvements, and a rapid return on investment.
A universal pneumatic nailing table, Semi-automatic European Pallet Pneumatic Nailing Table features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Instruction:
| Model | PT-1600 | PT-3300 |
| Wood pallet length | 600-1300mm | 700-1500mm |
| Wood pallet width | 800-1600mm | 900-3300mm |
| Operational mode | Pneumatic operation | Pneumatic operation |
| Air pressure | 0.8MPA | 0.8MPA |
| Production efficiency | 30-40pcs /h | 30-40pcs /h |
| Number of beams | 3p (customized) | 5p (customized) |
| Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
| Weight | 650kg | 950kg |
| Size | 2400*980*1900mm | 4000*980*1900mm |
Semi-Automatic Wood Pallet Nailing Machine/Euro Block Pallet Production Line
features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.
Technical specifications:
| AEPN-1400-1 Semi-automatic European pallet nailing machine | |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 700-1600mm |
| Nailing mode | manual |
| Working mode | PLC touching screen |
| Pallet returning mode | Electrical |
| Air pressure | 0.8MPA |
| Number of beams | 3p (or customized) |
| Number of nail guns | 2P (CN70,CN55) American Stanley staple gun |
| Main motor power | 5kw |
| Wood Pallet Turning Machine | |
| Turning speed | 4-8s/time |
| Wood Pallet Automatic Palletizer | |
| Palletizing capacity | 20pcs pallets |

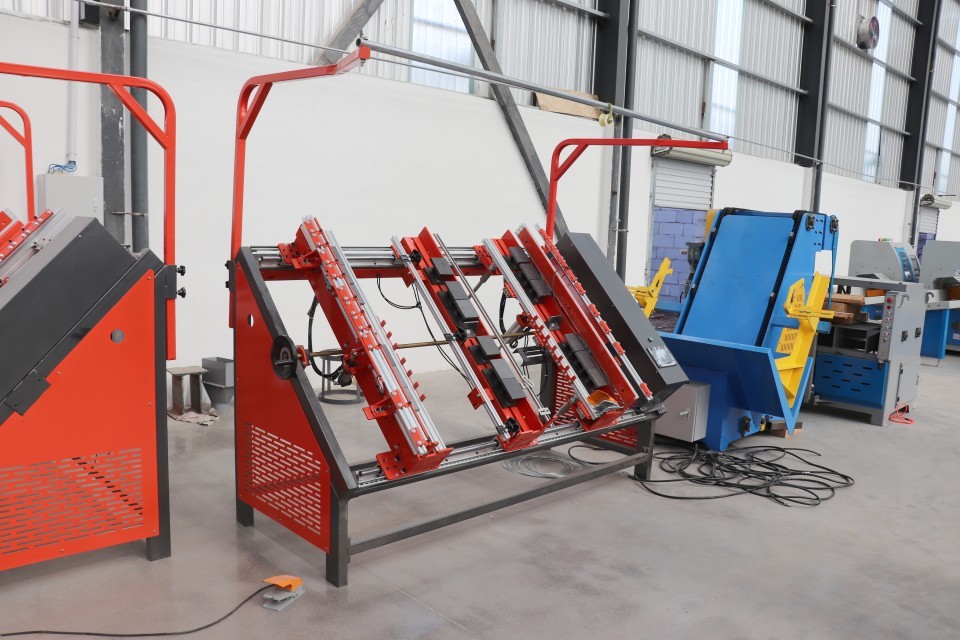

Detailed Images
Built for Reliability, Backed by Trustworthy Support
We engineer our equipment for long-term, dependable performance. This universal pneumatic nailing table is supported by a robust warranty and accessible customer service, ensuring your investment is protected and your production line remains operational.
Ready to revolutionize your pallet manufacturing efficiency and empower your workforce?
Contact us today to request a personalized demonstration and a detailed quote. Let us show you how our solution can directly address your production challenges.
